Rotary
Rotary ActuatorsCompactA032*80psi
Torque: 9 in-lb*
Shaft: 1/4" or 3/8"
DiameterAL75*80psi
Torque: 7-14 in-lb*
Shaft: 1/4"
DiameterA752*80psi
Torque: 35 in-lb*
Shaft: 3/8"
DiameterSingle Rack Tie-RodA01*80psi
Torque: 6 in-lb*
Shaft: 3/16" or 1/4"
DiameterA1*80psi
Torque: 12 in-lb*
Shaft: 1/4" or 3/8"
DiameterA2*80psi
Torque: 39 in-lb*
Shaft: 1/2"
DiameterA3*80psi
Torque: 119 in-lb*
Shaft: 3/4"
DiameterA4*80psi
Torque: 277 in-lb*
Shaft: 1" or 1 1/8"
DiameterDual Rack Tie-RodA12*80psi
Torque: 24 in-lb*
Shaft: 1/4" or 3/8"
DiameterA22*80psi
Torque: 78 in-lb*
Shaft: 1/2"
DiameterA32*80psi
Torque: 238 in-lb*
Shaft: 3/4"
DiameterA42*80psi
Torque: 545 in-lb*
Shaft: 1" or 1 1/8"
Diameter -
Multi-Position
Multi PositionThree Position ActuatorsA032*80psi
Torque: 6 in-lb*
Shaft: 1/4" or 3/8"
DiameterA12*80psi
Torque: 12 in-lb
Shaft: 3/8"
DiameterA22*80psi
Torque: 39 in-lb*
Shaft: 1/2"
DiameterA32*80psi
Torque: 119 in-lb*
Shaft: 3/4"
DiameterA42*80psi
Torque: 277 in-lb*
Shaft 1 or 1 1/8"
Diameter4 or 5 Position ActuatorsFour or Five Position*80psi
Torque: 12-277 in-lb*
Shaft: 3/8"-1 1/8"
Diameter -
Indexing
Indexing ActuatorsSingle RackX1*60psi
Torque: 9 in-lb*
Shaft: 3/8*
DiameterX2*60psi
Torque: 29 in-lb*
Shaft: 1/2"
DiameterX3*60psi
Torque: 89 in-lb*
Shaft: 3/4"
DiameterX4*60psi
Torque: 208 in-lb*
Shaft: 1"
Diameter -
Stepping
-
Multi-Motion
-
Nitpicker
Nitpicker ActuatorsSingle RackPX2*80psi
Torque: 39 in-lb*
Shaft: 1"
Diameter -
Shaft Mounting Adapters
Auto-Run Setup & Operation
Pneumatic signal ports can be used to drive pilot-operated valves or other control elements for auto-cycle or other functions. This operation is excellent for applications requiring very simple automation or if the actuator is to operate in hazardous areas such as explosive environments, where intrinsically-safe components are required.
Signal ports are additional components that are mounted onto an actuator’s cylinders and are available as a special option for any Rotomation tie rod actuator, including rotary, indexing, stepping, multi-motion, or nitpicker actuators. Make sure to specify this during the actuator configuration.
Please note that you may need additional plumbing components to setup auto-run operation and the 4-way valves need to be pilot-operated. See our information and setup sheet. Download PDF

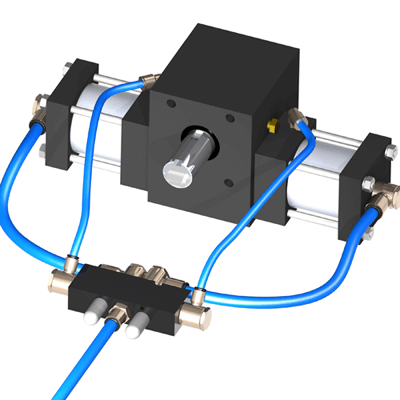

An X4 indexing actuator setup for auto-run operation (note the additional plumbing required):
